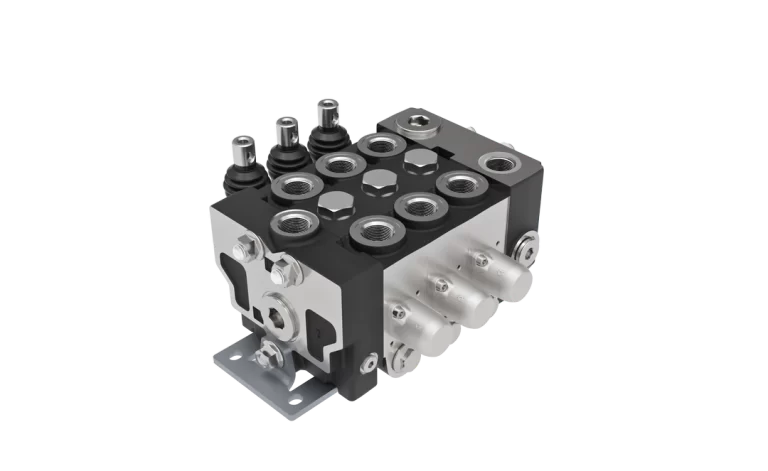

KV19

The KV19 is a high-flow sectional directional control valve designed for mobile hydraulic systems operating under aggressive duty cycles and requiring fast, accurate response. With a nominal flow capacity of 110 L/min and peak capability of 120 L/min, together with a 315-bar pressure rating, KV19 is suitable for equipment demanding rapid metering and dynamic control performance.

Key Features

• Nominal flow 110 L/min, maximum 130 L/min for peak demand conditions
• Maximum working pressure 315 bar suitable for heavy-duty mobile hydraulic circuits
• Special metering spool options available for fast reaction and precise flow control under aggressive operation
• Parallel circuit standard
• Integrated main relief valve and load hold check valves
• Wide range of spools
• Wide range of antishock & anticavitation valves
• Multiple spool and positioner options; manual, pneumatic, electro-pneumatic, hydraulic, electro-hydraulic on-off, electro-hydraulic proportional
• Suitable for equipment requiring fast cycle times and accurate flow modulation
